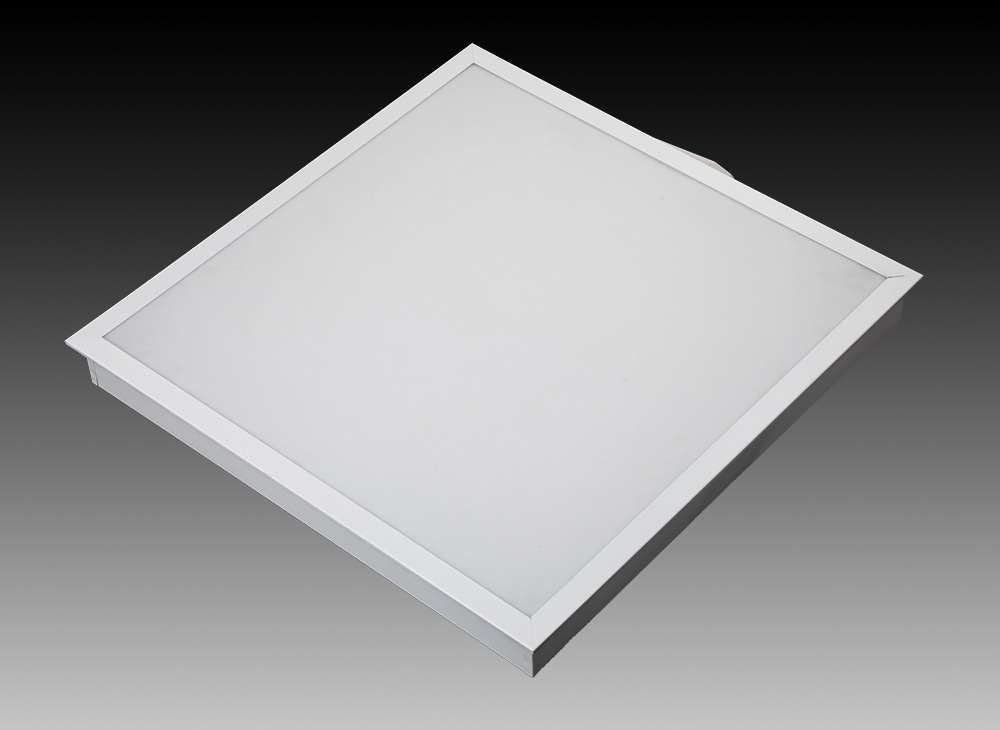

| LED背发光嵌入式面板灯 LED Back Light Recessed Luminaire | |||||||||
|
型号 model |
电压(V) Voltage |
功率(W) Power |
光通量(Lm) Lumen |
功率因素 Power factor |
显指 Ra |
寿命(h) Life time |
灯体尺寸(mm) Body size |
开孔尺寸（mm） Open size |
装箱尺寸（cm） Packing size |
| LED-P4040 | 220-240 | 20 | 1500 | 0.5 | ≥80 | ≥50000 | 395x395x60 | 375x375 | 41x41x7 |
| LED-P6060A | 220-240 | 29 | 2400 | 0.95 | ≥80 | ≥50000 | 595x595x60 | 575x575 | 61x61x7 |
| LED-P6060 | 220-240 | 38 | 3400 | 0.95 | ≥80 | ≥50000 | 595x595x60 | 575x575 | 61x61x7 |
| LED-P60120 | 220-240 | 76 | 7600 | 0.95 | ≥80 | ≥50000 | 595x1195x60 | 575x1175 | 61x121x7 |
| LED-P60150 | 220-240 | 100 | 9500 | 0.95 | ≥80 | ≥50000 | 595x1495x60 | 575x1475 | 61x151x7 |
| LED-P6060M | 120-277 | 38 | 3600 | 0.95 | ≥80 | ≥50000 | 603x603x60 | 585x585 | 62x62x7 |
| LED-P60120M | 120-277 | 76 | 7600 | 0.95 | ≥80 | ≥50000 | 603x1213x60 | 585x1195 | 62x122x7 |
