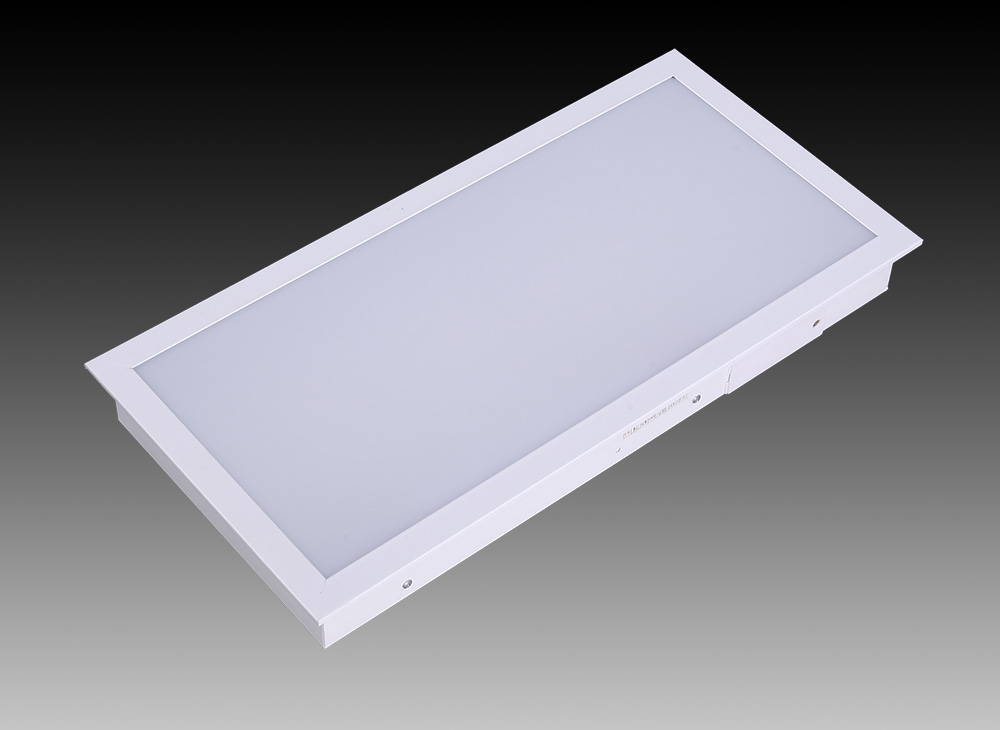

| LED背发光嵌入式面板灯 LED Back Light Recessed Luminaire | |||||||||
|
型号 model |
电压(V) Voltage |
功率(W) Power |
光通量(Lm) Lumen |
功率因素 Power factor |
显指 Ra |
寿命(h) Life time |
灯体尺寸(mm) Body size |
开孔尺寸（mm） Open size |
装箱尺寸（cm） Packing size |
| LED-P15120 | 220-240 | 22 | 1500 | 0.5 | ≥80 | ≥50000 | 145×1195×60 | 125×1175 | 16×121×7 |
| LED-P3030 | 220-240 | 11 | 800 | 0.5 | ≥80 | ≥50000 | 295x295x60 | 275x275 | 31x31x7 |
| LED-P3060 | 220-240 | 20 | 1500 | 0.95 | ≥80 | ≥50000 | 295x595x60 | 275x575 | 31x61x7 |
| LED-P30120A | 220-240 | 29 | 2300 | 0.95 | ≥80 | ≥50000 | 295x1195x60 | 275x1175 | 31x121x7 |
| LED-P30120 | 220-240 | 38 | 3200 | 0.95 | ≥80 | ≥50000 | 295x1195x60 | 275x1175 | 31x121x7 |
| LED-P30150 | 220-240 | 50 | 4400 | 0.95 | ≥80 | ≥50000 | 295x1495x60 | 275x1475 | 31x151x7 |
| LED-P3060M | 120-277 | 20 | 1600 | 0.95 | ≥80 | ≥50000 | 303x603x60 | 285x585 | 32x62x7 |
| LED-P30120M | 120-277 | 38 | 3400 | 0.95 | ≥80 | ≥50000 | 303×1213×60 | 285x1195 | 32x123x7 |
