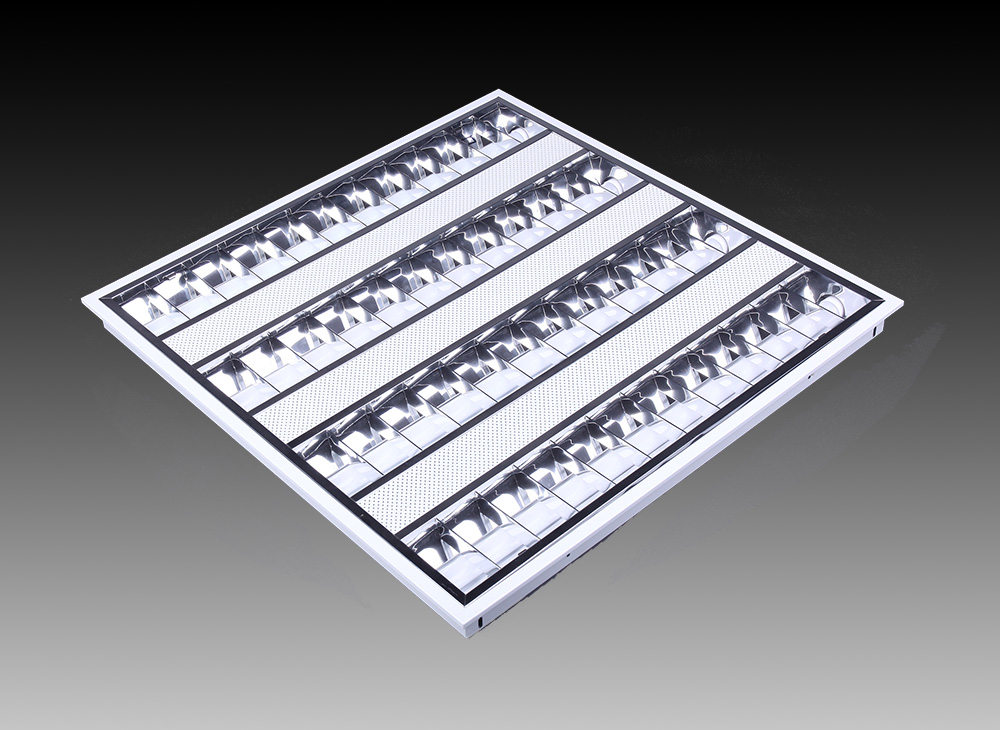

| LED嵌入式格栅灯 LED Recessed Grid Luminaire | |||||||||
|
型号 model |
电压(V) Voltage |
功率(W) Power |
光通量(Lm) Lumen |
功率因素 Power factor |
显指 Ra |
寿命(h) Life time |
灯体尺寸(mm) Body size |
开孔尺寸（mm） Open size |
装箱尺寸（cm） Packing size |
| LED-DB4/6060 | 220-240 | 42 | 3600 | 0.95 | ≥80 | ≥50000 | 595x595x40 | 575x575 | 61x61x5 |
| LED-DB4/60120 | 220-240 | 85 | 7000 | 0.95 | ≥80 | ≥50000 | 595x1195x40 | 575x1175 | 121x61x5 |
| LED-DB4/60150 | 220-240 | 106 | 8500 | 0.95 | ≥80 | ≥50000 | 595x1495x40 | 575x1475 | 151x61x5 |
| LED-DB4/6060M | 120-277 | 42 | 3600 | 0.95 | ≥80 | ≥50000 | 603x603x40 | 585x585 | 62x62x5 |
| LED-DB4/60120M | 120-277 | 85 | 7000 | 0.95 | ≥80 | ≥50000 | 603x1213x40 | 585x1195 | 122x62x5 |
